Product Details

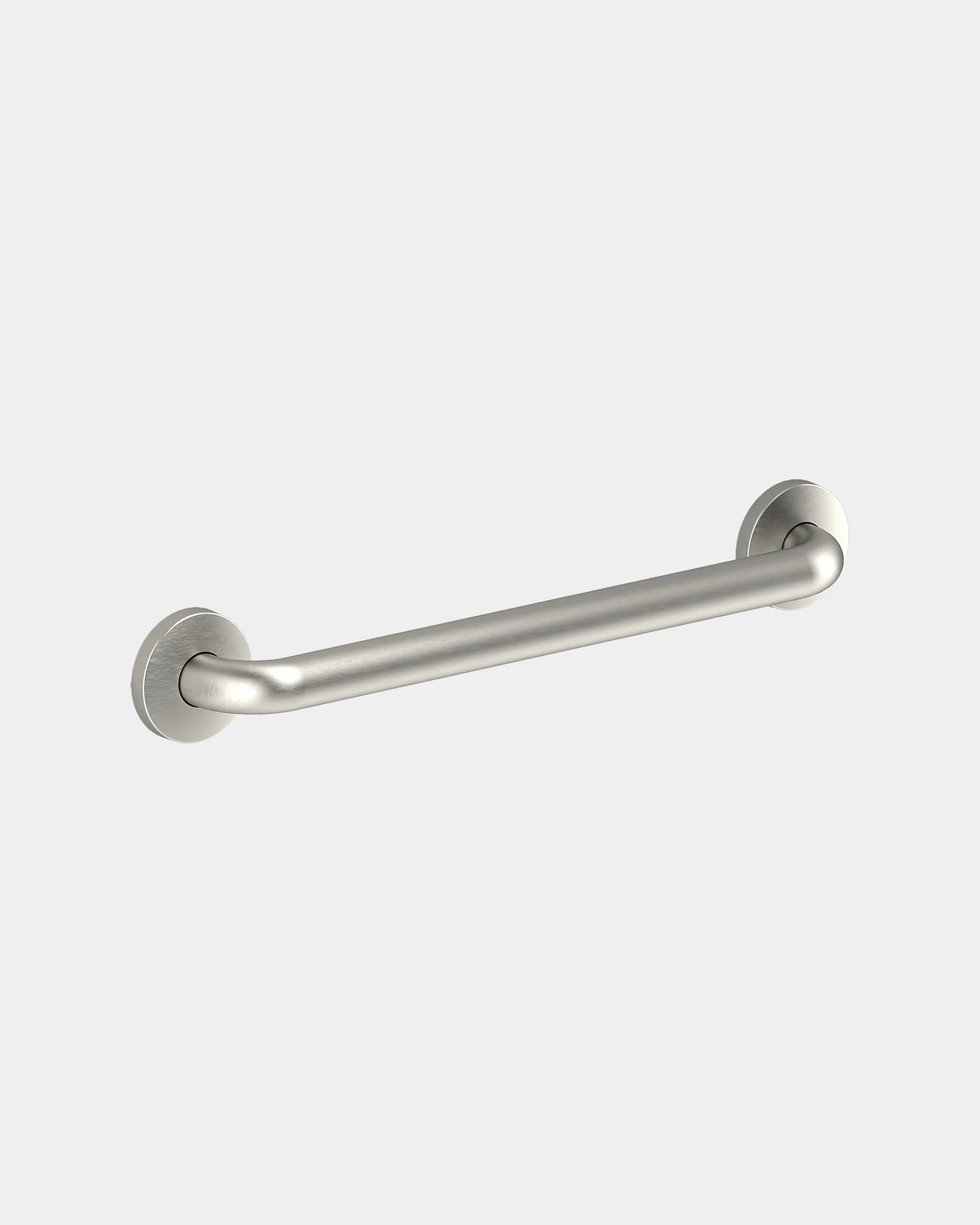

| Technical Description | 1.5 mm steel tube thickness Ø32 AISI 304. Shield anchor 3 mm thick stainless steel AISI 304. Trim stainless steel AISI 304 0 8mm thickness. Maximum load 120 kg . |
|---|---|
| Weight | 1 g |
| Product Dimensions | 536x81x70x455 |
| Installation Instructions | Download assembly instructions |
| Data Sheet | Download |
| Spec | Download Spec 445 |
| Applicable Standards | UNE-EN ISO 9227, UNE 67100, UNE-EN ISO 2409, ISO 17966, ADA STANDARDS, CSA/B651HB, ICC A117.1 |
